GOODS/PASSENGER HOIST
TWIN/TRIPLE MOTOR DRIVE CARRIAGE
WICKHAM RACK AND PINION PASSENGER/MATERIAL HOISTS ARE BUILT USING STANDARD MODULAR COMPONENTS,SIMPLY CHOOSE A SINGLE OR TWIN HOIST,THEN SELECT HOIST CAPACITY AND CAGE SIZE TO BEST SUIT YOUR PROJECT REQUIREMENTS.
[info_box style=”info”]SC320G,SC320/320G,SC270G,SC270/270G,SC200G,SC200GZ,SC200GD,SC200/200G,SC200/200GZ,SC200/200GD,
SC160G,SC160GZ,SC160GD,SC160/160G,SC160/160GZ,SC160/160GD,SC150G,SC150GZ,SC150GD,SC150/150G,
SC150/150GZ,SC150/150GD,SC120G,SC120GZ,SC120GD,SC120/120G,SC120/120GZ,SC120/120GD,SC100G,
SC100GZ,SC100GD,SC100/100G,SC100/100GZ,SC100/100GD,SC200,SC200/200,SC160,SC160/160,SC150,SC150/150,
SC120,SC120/120,SC100,SC100/100.[/info_box]
OUR HOIST DESIGN OFFERS SEVERAL OPTIONS OF SPEEDS AND SOFT START OPTIONS.BOTH STANDARD AND PURPOSE BUILT RACK AND PINION GOODS/PASSENGER HOISTS HAVE A MULTIPLE CHOICE OF FINISHING OPTIONS ON THE CAGE, ACCESS DOORS, LANDING GATES AND RAMPS TO MEET YOUR CUSTOM NEEDS, OUR SEPARATE DRIVE CARRIAGE ALLOWS A WIDE COMBINATION OF EITHER PASSENGER OR MATERIAL CAGES TO BE USED.CAGES SIMPLY BOLT DIRECTLY ONTO THE DRIVE CARRIAGE WITH 4 BOLTS, ONLY LIMIT SWITCHES AND PENDENT CONTROLS NEED TO BE PLUGGED INTO THE ELECTRICAL PANEL, MANUFACTURED IN ACCORDANCE WITH THE REQUIREMENTS OF CE STANDARDS.THE BASE SURROUND CAGE IS MODULAR AND CAN BE CHANGED TO SUITE DIFFERENT SIZE CAGES, WITH UP TO 3 ENTRANCES PER CAGE.THE BASE UNIT CAN BE LIFTED INTO POSITION AS A COMPLETE UNIT OR DISMANTLED INTO SMALLER PIECES WHEN REQUIRED BY SITE HANDLING RESTRICTIONS. LANDING GATES ARE SUPPLIED WITH BOTH ELECTRICAL AND MECHANICAL INTERLOCKS, WHICH PREVENTS THEM BEING OPENED UNTIL THE CABIN IS IN THE LOADING POSITION.OUR NARROW HOT DIP GALVANIZED MAST SECTIONS ENSURE A LONGER LASTING LIFE SPAN WITH THE HARSH CONDITIONS EXPECTED FROM AN OPPERATIONAL WORK SITE.THE TRAILING CABLE IS CONTROLLED VIA A TROLLEY CABLE SYSTEM SUSPENDED BELOW THE HOIST, THIS SYSTEM PROLONGS THE LIFESPAN OF THE CABLE.ALSO AVAILBLE CABLE BASKET COILLING SYSTEM

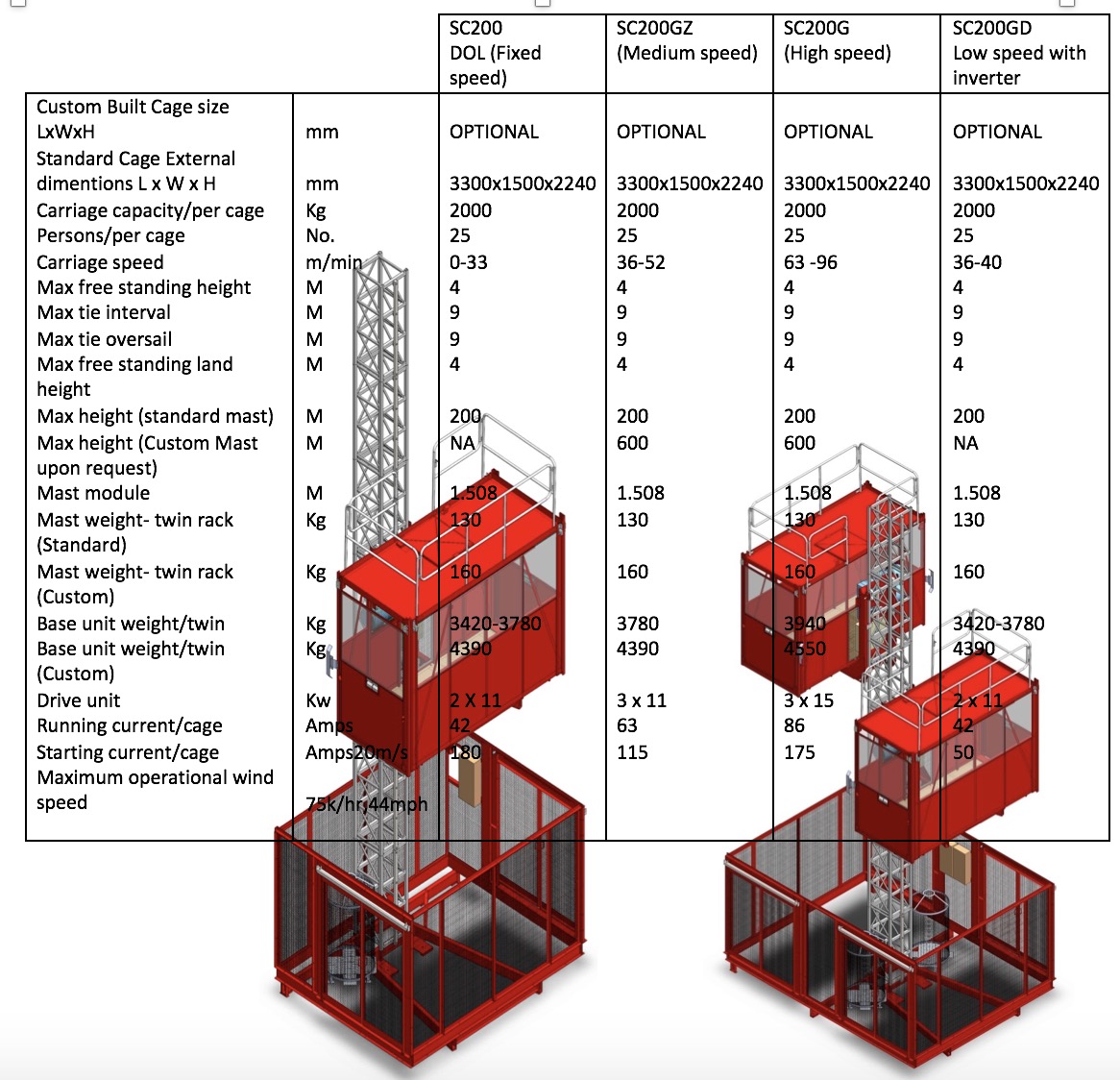

THE SC200GZ IS A RELIABLE AND EFFICIENT MEDIUM SPEED CONSTUCTION R&P GOOD/PASSENGER HOIST, OUTFITTED WITH A USER FRIENDLY OPERATION SYSTEM, SIMPLICITY IN INSTALLATION WITH A PROVEN DESIGN AND RELIABILITY.
THE SC200G HAS VARIBLE CARRIAGE SPEED SETTING RANGING FROM 0-96 M/MIN WHICH MAKES IT AN IDEAL MULTISPEED R&P GOODS/PASSENGER HOIST, OUTFITTED WITH A USER FRIENDLY OPERATION SYSTEM.SIMPLICITY IN INSTALLATION AND A PROVEN DESIGN WITH RELIABILITY. THE ELECTRICAL SYSTEM CAN BE PROGRAMMED TO SUITE A NUMBER OF REQUIREMENTS, WITH A SOFT START AND 3 VARIABLE SPEEDS BOTH UP AND DOWN VIA A FREQUENCY INVERTER.THE CONTROL PANEL CAN INCLUDE A CALL SYSTEM AND PUSH BUTTON FLOOR SELECTION OPTION
THE SC200GD IS A RELIABLE HIGH TORQUE STANDARD SPEED 0-36 M/MIN TO 40M/MIN WITH INVERTER SYSTEM CONSTRUCTION R&P GOODS/PASSENGER HOIST WITH A PROVEN DESIGN, OUTFITTED WITH OUR USER FRIENDLY OPERATION SYSTEM. SIMPLICITY IN INSTALLATION.
THE SC200 IS A RELIABLE DOL(FIXED SPEED)HOIST RUNNING AT 36M/MIN IDEAL FOR GENERAL CONSTUCTION PURPOSES
