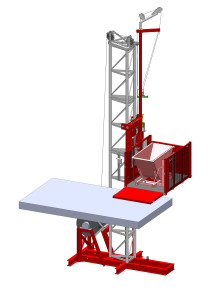

Wickham GR1000-2 material hoist is a highly efficient machine designed with safety and user economy as the main priority.
Suited to harsh conditions found on construction sites,it will lift a wide variety of building materials to a top landing height of 100 meters and a loading capacity of 1000 kg.
A simple wire rope mechanism driven by 3 ph, 11 kw drive unit ensures low starting current and low energy usage.(Running:19 Amps,Starting:75 Amps)
Simple Installation:The base unit is placed onto a simple foundation slab with 4 expanding anchors.From this point the hoist can be erected or dismantled by 2 men using the erection jib.Building ties are fixed at 9.0 m centers.
Fey Features: Bolt on material cage with 2 drop down doors/ramps; 2.0 m x 1.5 m wide
Bolt on mortar/concrete bucket 0.4 m3, tilting to allow fast unloading
Bolt on reinforcement bar carrier, supplied in three sections to carry steel bars/pipes up t 6 metes long
Safety Features: Controlled Lowering
Broken rope safety brake/emergency brake
Electromagnetic motor brake
Upper and lower travel limit switches
Slack rope limit switch
Phase failure/reversal protection
Emergency stop switch on pendent control
Plug in/removable pendant control to prevent unauthorized usage
Drive motor thermal overload protection
All electrical components are CE specification,and the hoist is designed in accordance with BS4465
